Code Red Performance
Center Console Armrest
Center Console Armrest
Couldn't load pickup availability
The OEM armrest (Mazda part F110-64-440D) was designed for RHD cars. In a LHD FD3S it opens the wrong way, sits at the wrong angle, and offers minimal padding. For a car built to be driven, that's a problem worth solving.

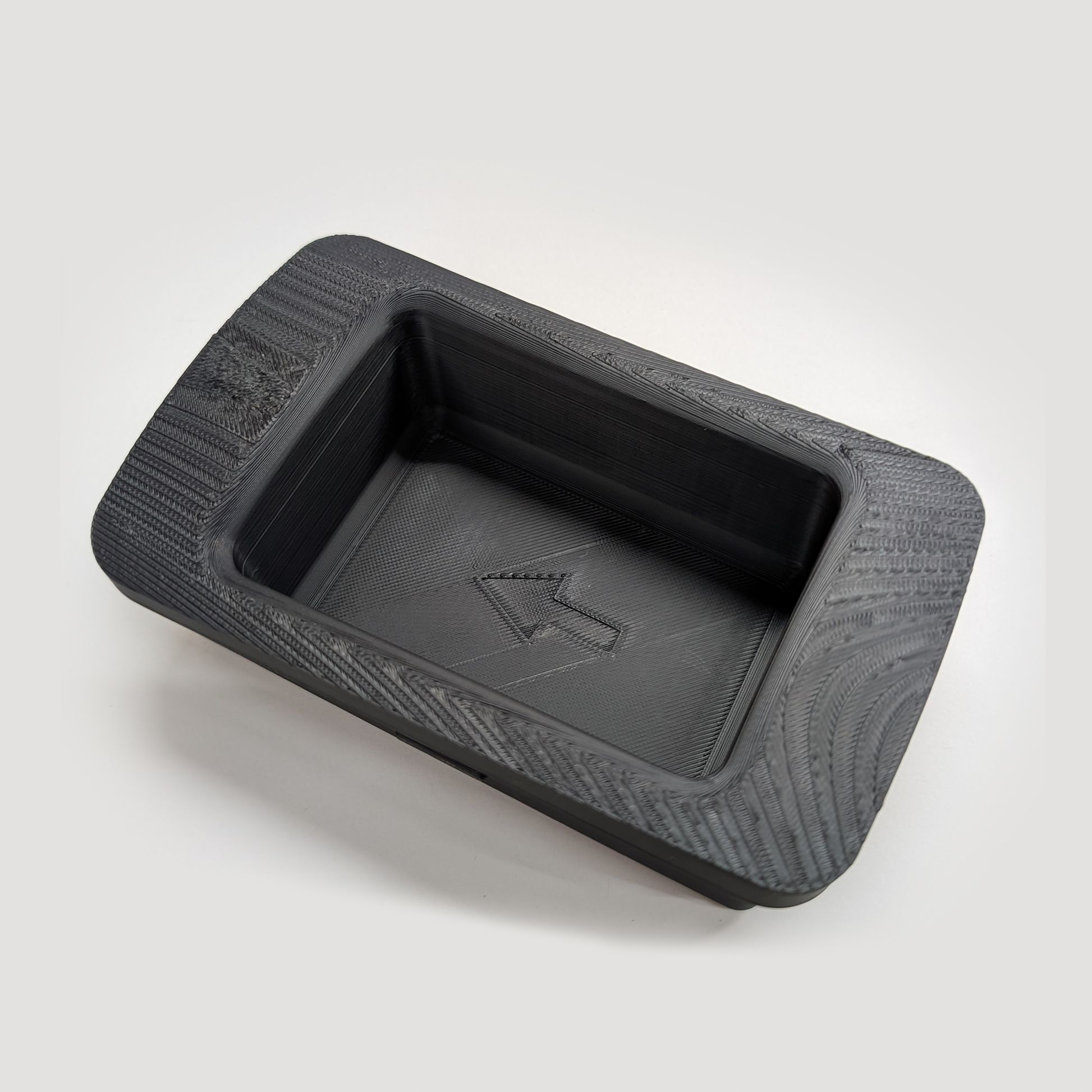

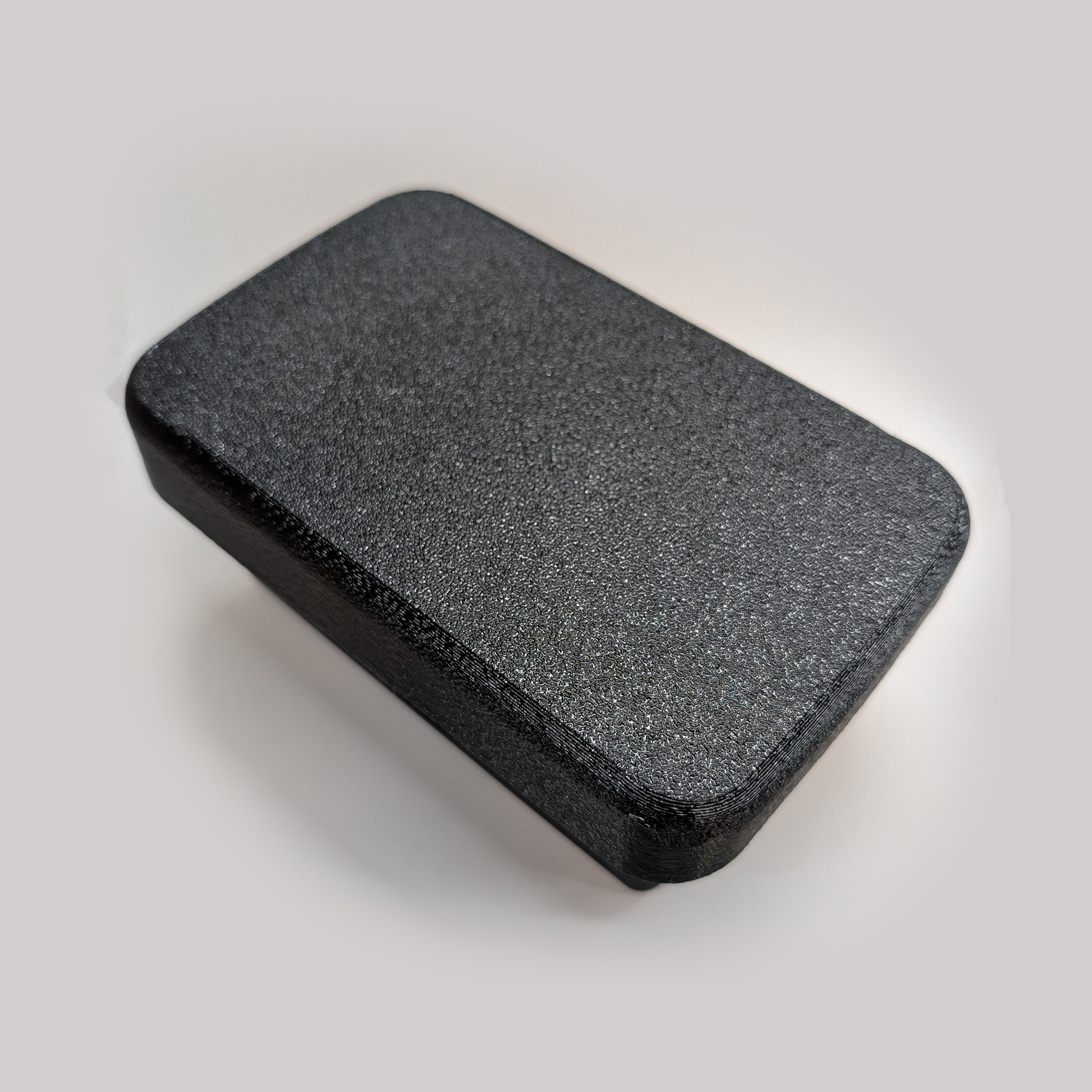

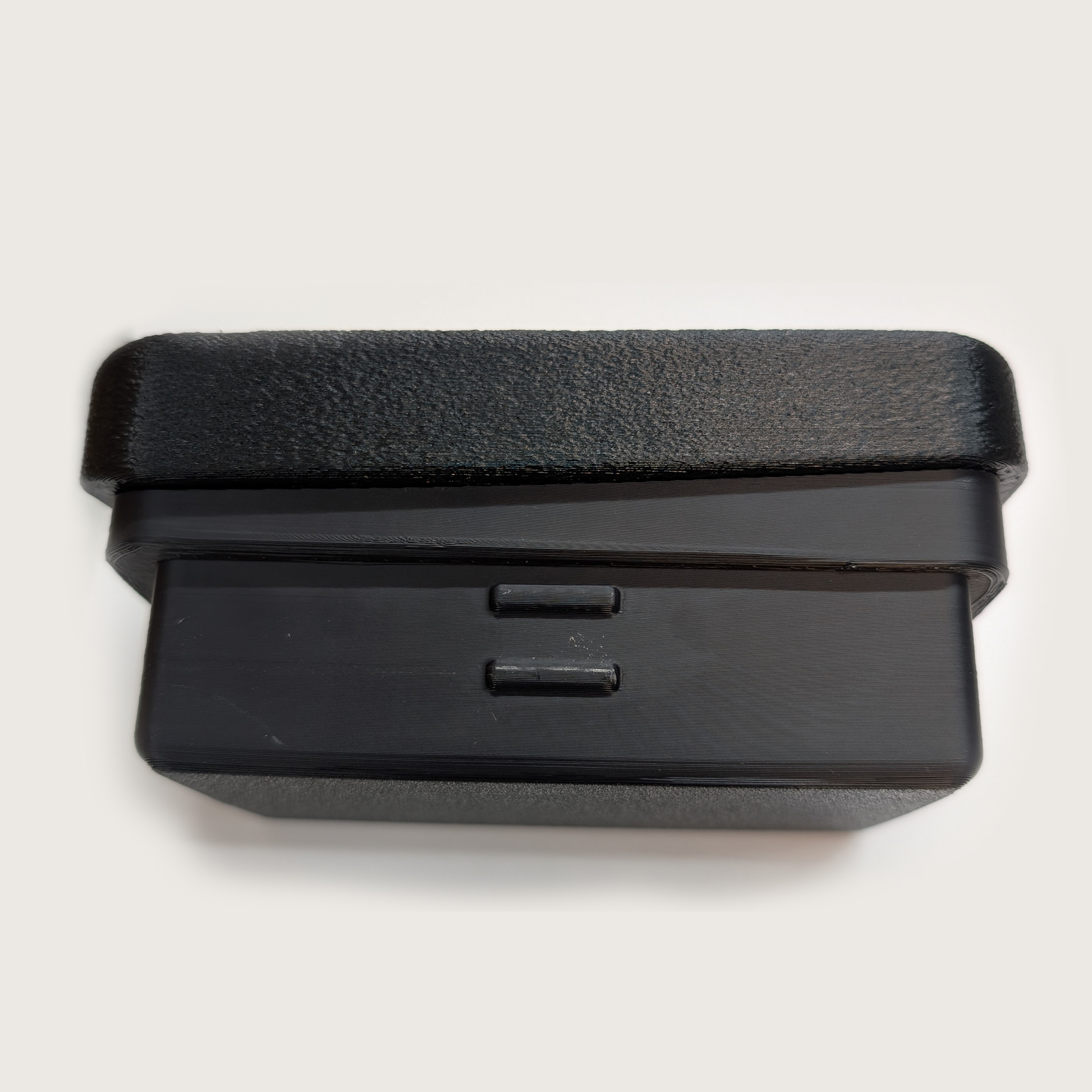

This armrest is reverse-engineered specifically for left-hand drive FD3S models. 25mm shore 95A TPU padding. Hidden magnetic storage pocket with 230cm³ capacity — enough for cards, change, and small essentials. 13lb pull-force magnets in both the pad and base keep everything secure and aligned without tools.
Installation

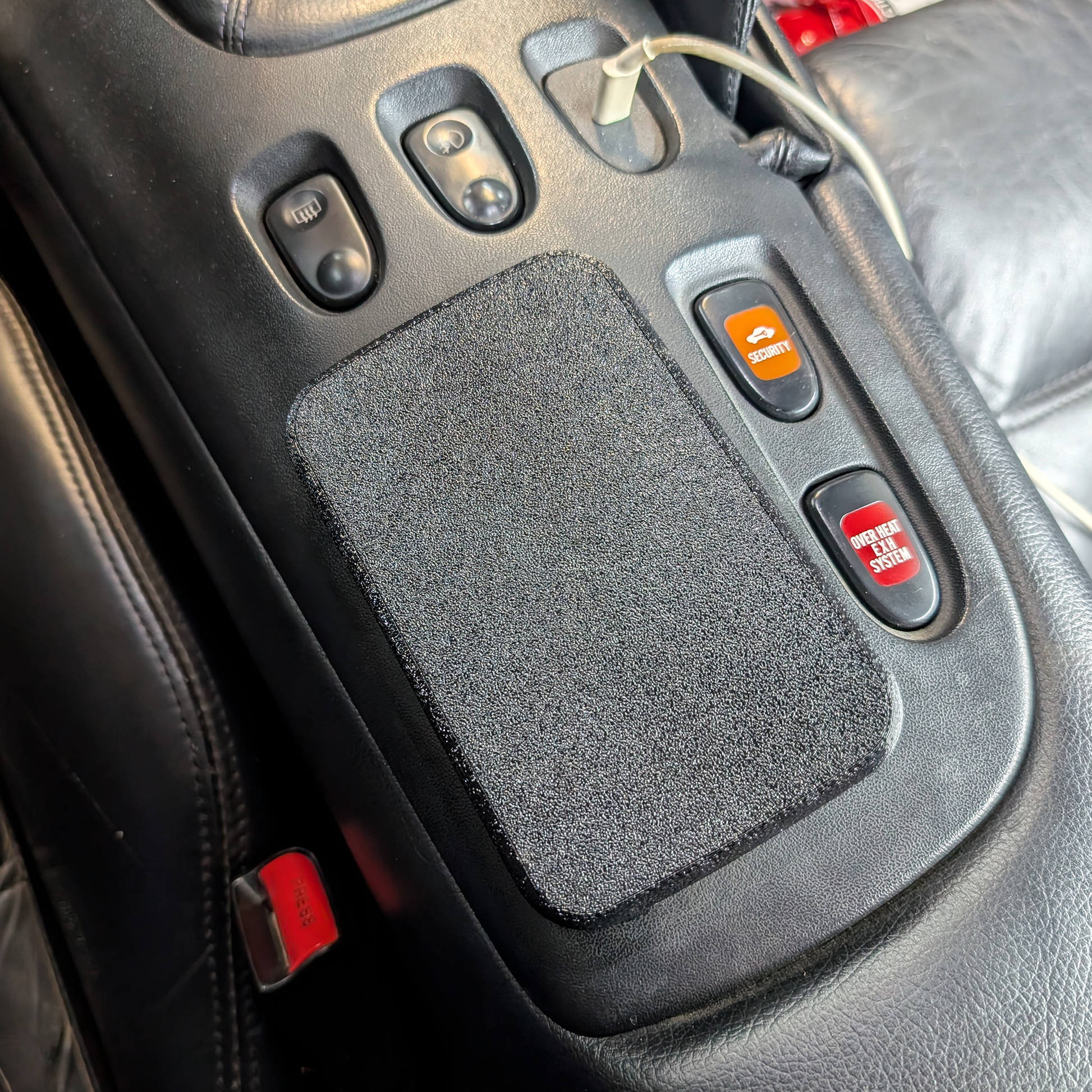

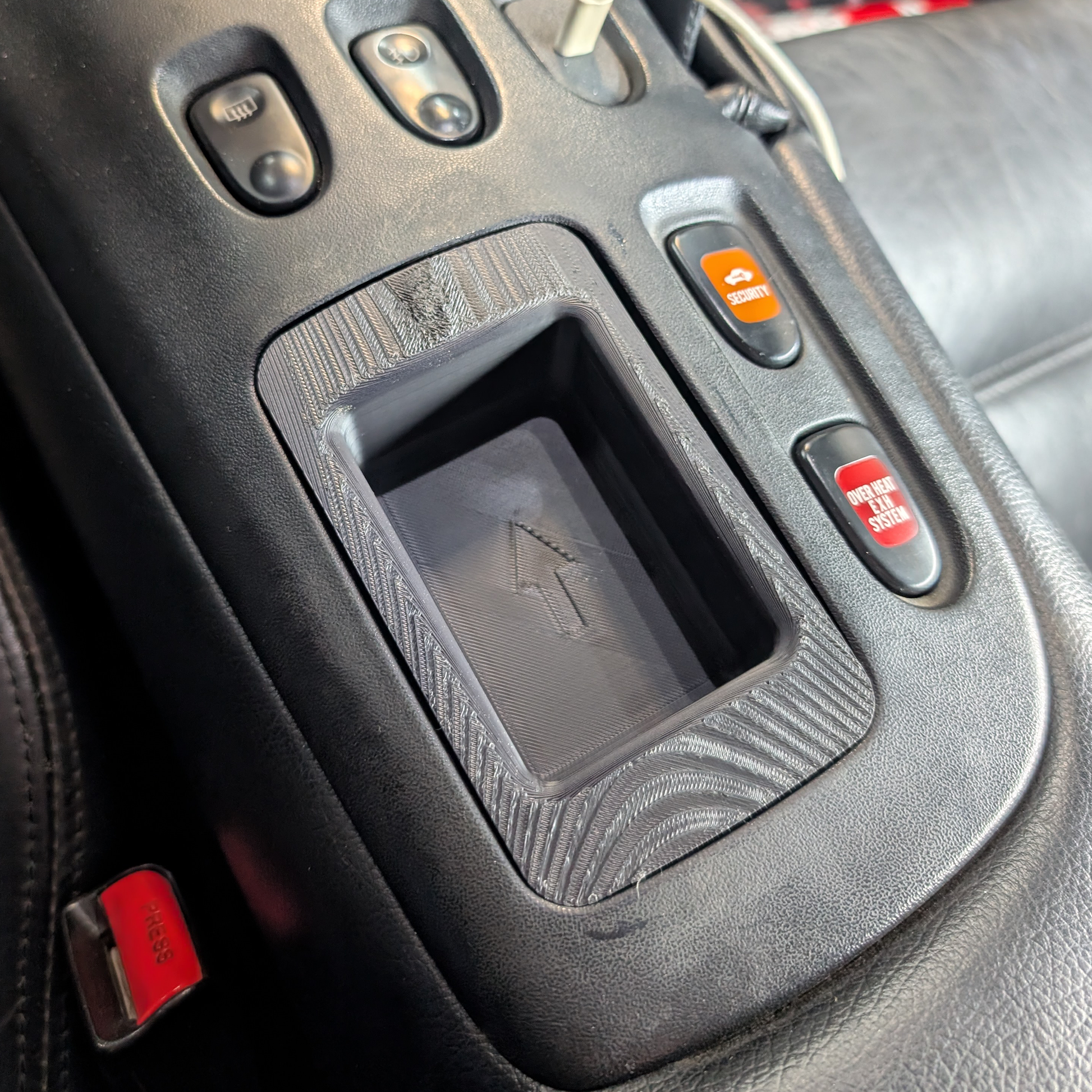

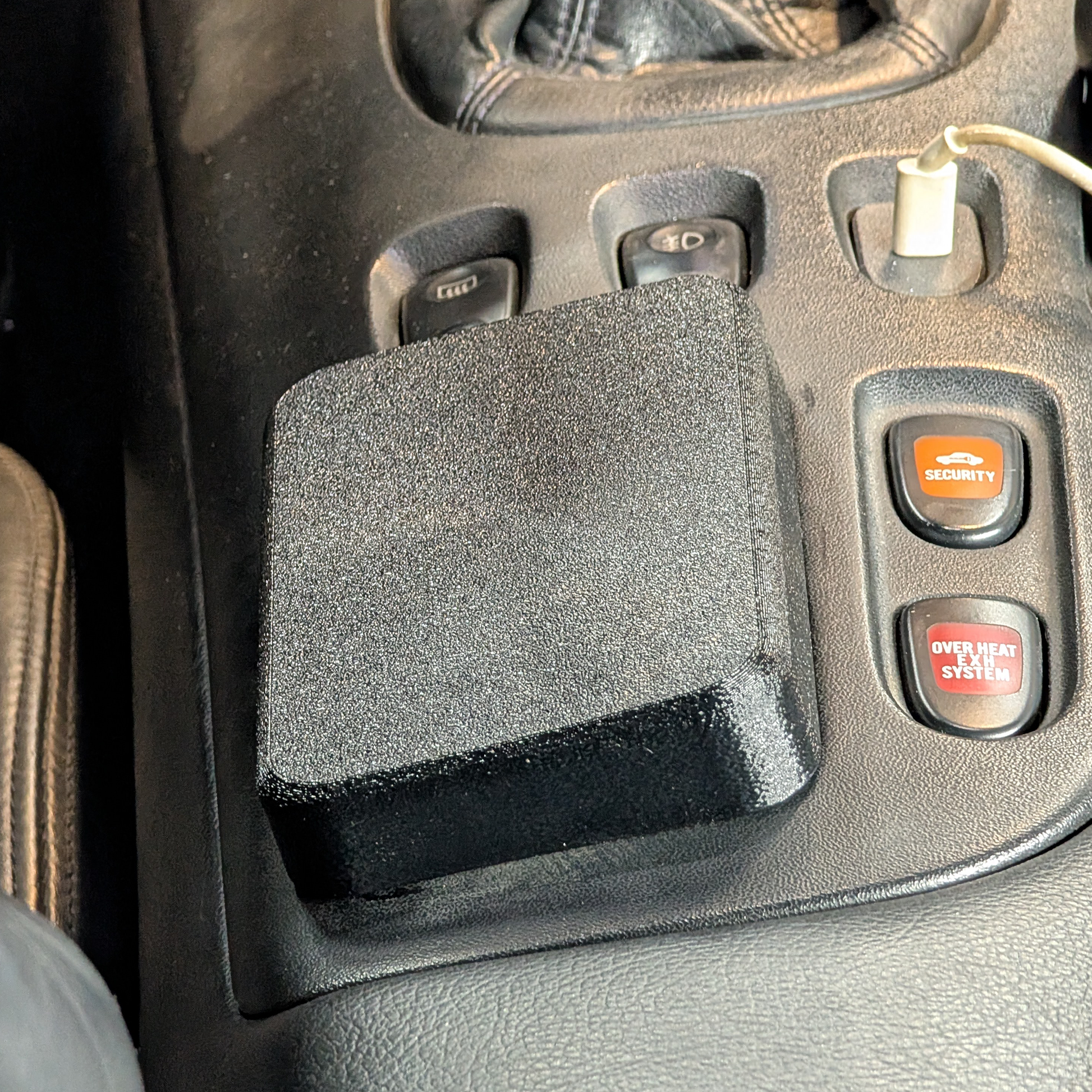

Tool-free. Under 30 seconds. Remove the OEM coin slot or armrest, insert the base with the arrow pointing forward, and set the magnetic pad on top. The magnets self-align and lock both pieces.
Materials
ASA base for heat resistance and dimensional stability. Shore 95A TPU pad for long-term comfort without compression fatigue.
Designed, engineered, and manufactured in-house to exacting OEM standards.
- Mazda FD3S RX-7 (LHD only), 1993–1995, all trim levels.
- Textured: 1x Padded Armrest (Textured finish)
- Smooth: 1x Padded Armrest (Smooth finish)
- F110-64-440D
