Headlight Motor Boot Set
Headlight Motor Boot Set
Couldn't load pickup availability
The OEM headlight motor boot (NA01-51-669) is rubber. After 20-plus years of engine bay heat and UV exposure, it cracks, hardens, and falls apart — or it is already loose and doing nothing. Mazda sells it only as part of a complete wiper assembly. There has been no standalone replacement. Until now.
Printed in ASA for heat and UV resistance. Includes both driver and passenger boots. Available in Solid Black for a clean OEM-style finish, or the CW Arrow version with a directional arrow marker for quick visual reference when manually adjusting the headlight motor.
Installation

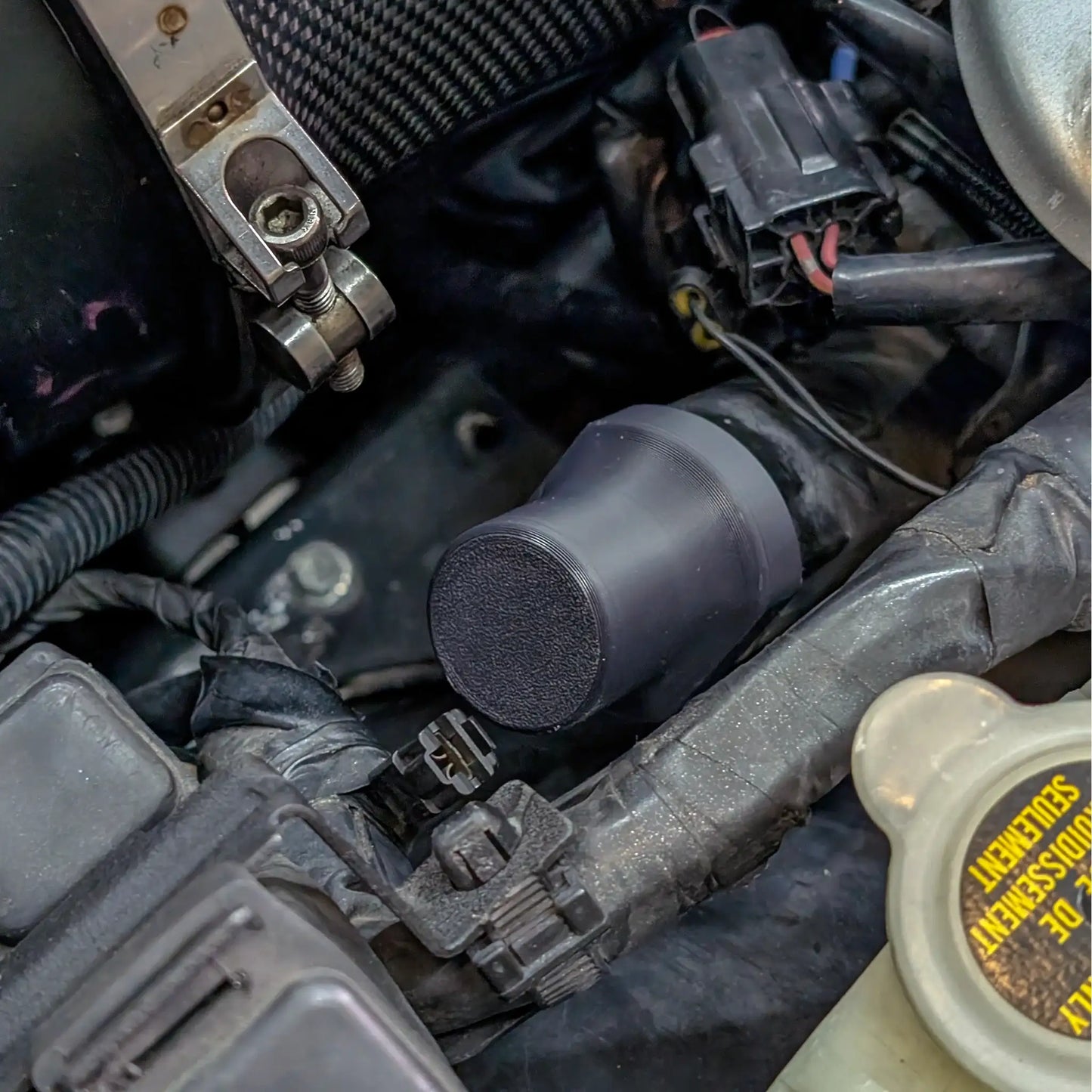

Tool-free install and removal. Direct fit over the headlight motor.
Materials
ASA plastic. The rigid material does not seal against water as tightly as the original rubber, but provides solid protection from debris and heat. Worth noting: the 20-year-old OEM rubber is almost certainly loose or compromised already.
Designed, engineered, and manufactured in-house to exacting OEM standards.
- Mazda FD3S RX-7, all production years (1992–2002), all trim levels.
- Mazda NA MX-5 (Miata), all production years (1989–1997), all trim levels.
- Solid Black: 2x Headlight Motor Boots (Solid Black)
- CW Arrow Version: 2x Headlight Motor Boot (with directional arrow marker)
- NA01-51-669
